DÜŞÜK VAKUM MANİFOLDU 0 -35 CB

Ürün Özellikleri:

Ürün Kodu:
0725G2

Ağırlık:
14.00 lbs

Boyutlar:
25.00L x 19.00W x 13.00H

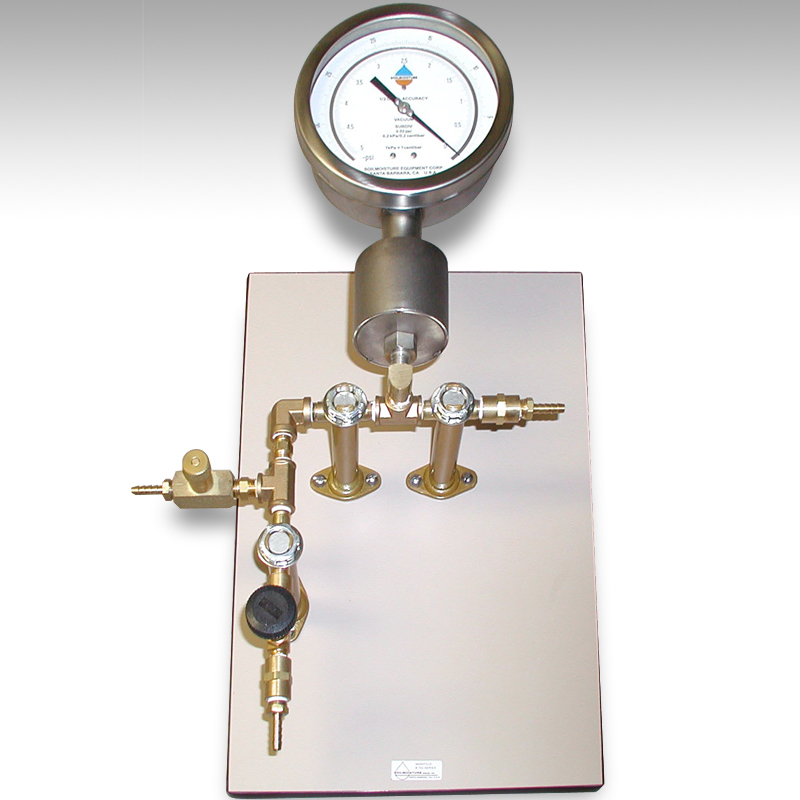

Precise low-pressure vacuum control manifold designed for use with the 1000, 15 Bar Pressure Membrane Extractor, the 1500F2, 15 Bar Pressure Plate Extractor, or the 1600F1, 5 Bar Pressure Plate Extractor.Allows low tension work with a high degree of pressure stability and accuracy, unattainable with pressure regulators. Vacuum pump sold separately. The 0725G2 Vacuum Control Manifold is designed for regulating and monitoring the vacuum supplied to pressure extractors for very low tension work. It is comprised of control valves, tubing and connectors, and a precision vacuum test gauge. Mounted by standoffs to a 19 mm thick baseboard suitable for mounting on a laboratory wall.Output vacuum can be regulated from 0 to minus 5 psi (0 to minus 34 centibars). Readout vacuum gauge is graduated from 0 to minus 5 psi (0 to minus 34 centibars) in 0.02 psi and 0.002 bar intervals.

ÖZELLİKLER: Vakum Manifoldu: 0725G2 – Doğruluk: %1/2 – Altbölüm: 0.02 psi – 0.2 kPa / 0.2 santibar – Aralık: 0 – 35 santibar
Ağırlık: 14 lbs – Boyutlar: 25X19X13 inç

  • Toprak Su Tutma
  • Toprak Fiziği
  • Maden

Ürünlerimiz hakkında ayrıntılı bilgi almak için…
