BASINÇ AYAR SİSTEMİ (MANİFOLD) – 1000, 1500F2, 1600F1
Ürün Özellikleri:
Ürün Kodu:
0700CG1F123F1
Ağırlık:
56.00 lbs
Boyutlar:
37.00L x 19.00W x 13.00H
1000, 1500 F2 ve 1600 F1 Ekstraktörlerini birlikte veya birebir çalıştırmak için

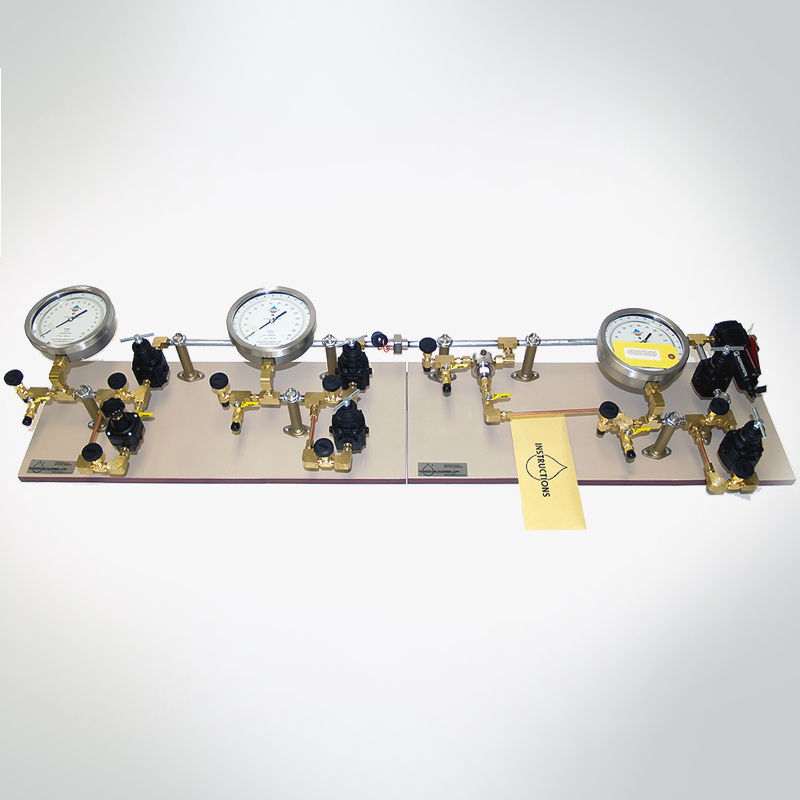

Combines the 0700G1F1, 0700G2, and 0700G3F1 manifolds and allows operation of the 1000, 15 Bar Pressure Membrane Extractor, the 1500F2, 15 Bar Pressure Plate Extractor, and the 1600F1, 5 Bar Pressure Plate Extractor. Output pressure can be regulated from 10 to 250 psi (0.7 to 16 bars) and from 3 to 60 psi range (0.2 to 4 bars). Double regulation is provided. The 300 psi readout test gauges are graduated from 0 to 300 psi (0 to 20 bars), in 2 psi and 0.1 bar intervals. The 60 psi readout test gauge is graduated from 0.2 psi and .02 bar intervals.
Çıkış Basınç Aralığı: 10-250 psi (0.7 to 16 bar) ve (0.2 to 4 bar)
300 psi Okuma Göstergesi: 0 to 300 psi (0 to 20 bar)
Ağırlık: 56 lbs – Boyutlar: Her 2 Kutu: 37X19X13 inç
- Toprak Su Tutma
- Toprak Fiziği
- Maden
